Patent: 8888294
Cooling Module for Multiple Light Source Projecting Device

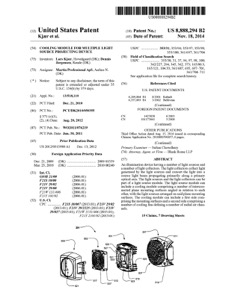

(Click image for PDF of full patent)
| Patent Number: |
8888294 |
| Title: |
Cooling Module for Multiple Light Source Projecting Device |
| Abstract: |
An illumination device having a number of light sources and a number of
light collectors. The light collectors collect light generated by the
light sources and convert the light into a source light beam propagating
primarily along a primary optical axis. The light sources and the light
collectors can be part of a light source module. The light source module
can include a cooling module comprising a number of interconnected plane
mounting surfaces angled in relation to each other, with the light
sources arranged on said plane mounting surfaces. The cooling module can
include a first side comprising the mounting surfaces and a second side
comprising a number of cooling fins defining a number of radial air
channels.
|
| Country of Issue: |
US |
| First Named Inventor: |
Kjaer, Jorgensen |
| Assignee: |
Martin Professional |
| Continuation or Divisional of: |
|
| International Classification: |
G03B 21/00 |
| US Classification: |
353/30 |
| Issue Date: |
11-18-2014 |
| Filing Date: |
12-21-2010 |
| Application : |
13/518110 |
| Notes: |
|
| Link to Patent at freepatentsonline.com: |
8888294 at Freepatentsonline |
| Link to World Patent Family1: |
World Patent Family at European Patent Office |
| Link to Google Patents1: |
8888294 at Google Patents |
1. The Google Patents and World Patent Family links will likely not work until a few weeks
after the patent has issued - they take a while to get new patents in their systems.
